Accessories for LMI Chemical Metering Pumps

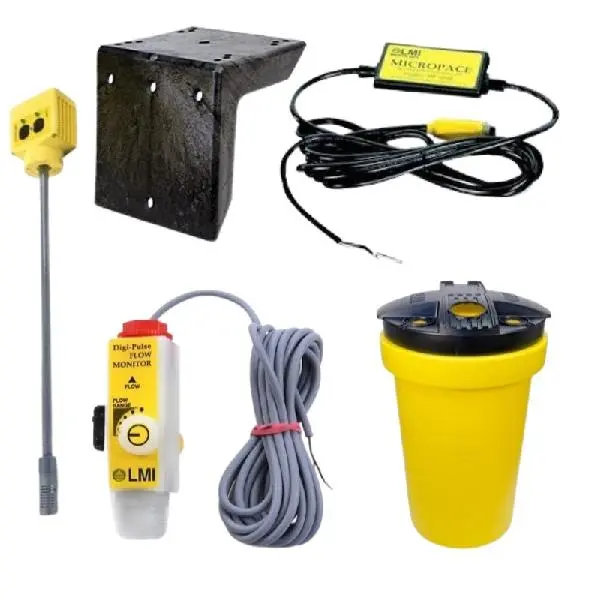

Click image to enlarge
Chemical metering pumps displace and transfer fluids with extreme accuracy in which precise volumes of a liquid need to be pumped. Precise chemical dosing is required to effectively remove bacteria, microorganisms, dissolved minerals, and additional impurities in water while maintaining balanced pH levels. Maverick Pumps is proud to provide several accessories for LMI chemical metering pumps, including agitators, tanks, and low-level switches.

Browse our product offerings below and find the best chemical metering pump accessories for your needs today.

10590 Agitators

An agitator is an accessory that stirs or shakes materials. 10590 Agitators stir settled solids and prevent metering pumps from clogging and further damage.

10590 Agitators Features

  • Compatible with LMI 35- and 50-gallon tanks
  • Available in Neoprene R and epoxy-coated stainless steel
  • Chemical-resistant coating
  • Mounting hardware included

26350 50 Gallon Tank

Storage tanks provide flooded suction for chemical metering pumps, ideal for applications where low output is required. LMI pumps are placed in the molded recess area near the bottom of the tank.

23650 50 Gallon Tank Features

  • Ultraviolet-resistant, molded yellow polyethylene tank
  • High rigidity black polyethylene cover with molded recess for mounting of pump, agitator, and liquid level switch
  • 50-gallon (20 liter) graduations
  • Self-supporting, tapered sides
  • Suitable for most corrosive and noncorrosive solutions
  • Certified for NSF/ANSI Standard 61 and 372

26731 Low Level Switch

The 26731 Low Level Switch is compatible with 50-gallon tanks and monitors the level of material in the tank, alerting controllers when the container needs to be refilled.

26731 Low Level Switch Features

  • Corrosion-resistant switch assembling housing of glass-reinforced polypropylene
  • PVC float tube
  • Foamed polypropylene float with encapsulated reed switch
  • Float protector prevents false actuation due to turbulence and rough handling
  • Low voltage (12V) transformer to reed switch for safety
  • Pilot light indicates low level or pump on

34643 Wall Mount Bracket

The 34643 Wall Mount Bracket allows LMI chemical metering pumps to face either right or left. Mounting a pump on a wall minimizes the chance of splatters by raising the pump away from the solution drum, while making changing of solution in the drums easier.

34643 Wall Mount Bracket Features

  • Rugged, polypropylene bracket provides excellent chemical resistance
  • All hardware included for mounting pump and bracket to wall studs, concrete, or hollow block walls
  • Provides a stable mounting surface
  • Wall mounts any of LMI’s Series A, AA, B, C, H, HH, J, or P pumps

49287 Corp Stop

Corporation Stops use chemical dispersion away from pipe sidewall to eliminate pipeline corrosion and improve mixing. The 49287 Corop Stop allows easy nozzle withdrawal for service removal of injection check valve without shutdown of the treated line.

49287 Corp Stop Features

  • 3/4” NPT – CPVC Nozzle – Bronze Corporation Stop
  • Maximum temperature of 180°F (82°C)
  • 0.10% maximum lead content

FM-8XX Digi-Pulse™

The FM-8XX Digi-Pulse™ monitors and transmits the pulsating flow of your pump, and will electrically signal a low flow or no flow condition.

FM-8XX Digi-Pulse™ Features

  • Adjustable to any desired pulsating flow rate within its range
  • 20 in. cable
  • 0.05 – 5.0 ml/stroke flow range
  • 240/minute maximum pulse (stroke) rate
  • Maximum pressure of 150 psi

MP-100 Micropace®

The LMI Micropace® Signal Converter is an analog-to-digital converter designed to respond to changes from flowmeters, pH analyzers, or other common devices that provide a 4-20 mA output signal.

MP-100 Micropace® Features

  • 12 ft. cord
  • Compatible with LMI AA7, A7, B7, C7, or P7 metering pumps
  • Weight: 3 lbs.
  • Splash-proof
  • Remotely controls the pump speed (stroke frequency)

Contact Us for LMI Chemical Metering Pump Accessories

Maverick Pumps is a leading supplier of LMI chemical metering pumps, pH/ORP controllers, pump parts, and accessories. Based in Scottsdale, we serve industrial customers throughout Arizona and the Southwest. Request a quote on the industrial pump your application requires, or contact us for more information.
